Car Rear View Backup Camera 170° CMOS Reverse 8 LED Night Vision Waterproof

170° CMOS Car Rear View Backup 8 LED Camera Reverse Night Vision Waterproof

Features:

• 100% Brand new and high quality
• with 8 LED Lamp, will be very clear even at night
• compatible with DVD automobile navigation
• 170 degree wide-angle, find the potential reverse in reality, such as kids in a blind eye, novice drivers reverse the dilemma, transfer from the car parking area.
• with CCD core, the video and picture will be more clear
• waterproof, shockproof, and dustproof
• good quality and longer service time.
• Drill Hole Style Car HD Rear-View Camera, gives you a full sight of the back of your car when you are driving
• 8 LED Infrared Night Vision ensures the car driving safety when backup or parking at night
• Helps to avoid incidents, accidents abrasion and ensure your safety
• Anti-fog glass, CMOS imaging sensor
• Support NTSC/PAL video system
• With the high sensitivity, you can get rid of the poor rear vision
• High definition and up to 170 degrees wide viewing angle
• Use high-quality Chip to make vivid and clear images
• Compact design, easy to install and operate
• IP68 waterproof design, shock-proof and anti-jamming functions
• Applicable to a variety of Vehicles: car, truck, RV, etc
• Can connect to any type of monitor with a composite yellow RCA jack

Specifications:

• Image Sensors: PC1030 1/4 Inch Color CMOS
• Sensor Area: 4.08 x 3.12mm
• Effective Pixels: 648 x 488 Pixels
• LED Quantity: 8 IR LED
• Lens Angle: 170 / 135 degrees
• Image pipeline feature: Auto exposure, AWB, AGC, Auto flicker detection, and cancellation
• Video System: PAL/NTSC(Automatic throw-over)
• Minimum Illumination: 0.2Lux(0Lux with IR on)
• Scanning System: 2:1 Interlace
• Resolution : 420TV lines
• Electronic Shutter: 1/60(NTSC) / 1/50(PAL)~1/1000s
• Gamma Coefficient: 0.45
• S/N Ratio: >45.6db
• Dynamic Range: > 63.5db
• Waterproof Class: IP 68
• Operation Temperature: -20℃~ +75℃
• Storage Temperature: -40℃~+85℃
• Video Output: RCA connector, 1.0vp-p, 75Ohm
• Working Power: DC12V
• Current Consumption:60mA
• Video cable length: Approx 6 m/ 236.2 inch
• Power supply cable length: Approx 1.2m/ 47.2 inch
• Drill Hole Diameter: Approx 18.5mm/0.73 inch
• Camera Dimension: Approx 25*21*18.5mm/0.98*0.83*0.73 inch

How to install?

• Use the hole drilled to mount the camera at the back of the car (on the license plate back window or other suitable places)
• Connect the power of the camera to your reverse lights – red wire to positive and black wire to negative.
• Connect the video cable of the camera to the extension cord.
• Connect the extension cable to the car monitor.

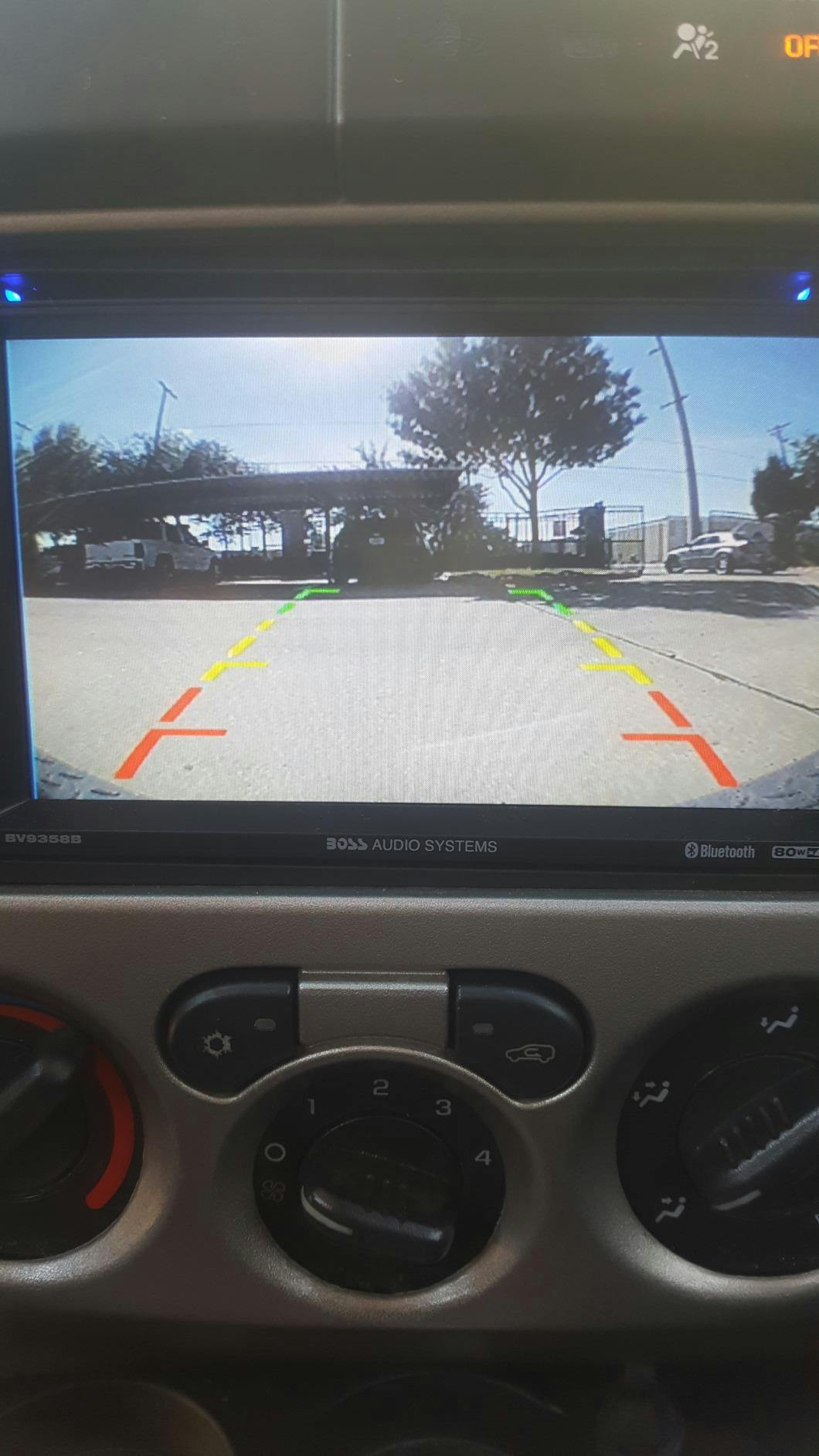

• You will see the images when your car is in reverse shift.
• Does NOT come with Monitor…

Package including:

• 1 x 8 LED round back up camera
• 1 x video cable
• 1 x power cable
• 1 x hole saw
• 1 x English instruction
• 1 x colored box package
